    BSBIRT

    Ball Stud Bearing Installation and Removal Tool

    To suit Caterpillar 785, 789 and 793 Haul Trucks

    Book a demo
    Say hello to your new mate

    The engineered system for safe, precise, and fast bearing change-outs.

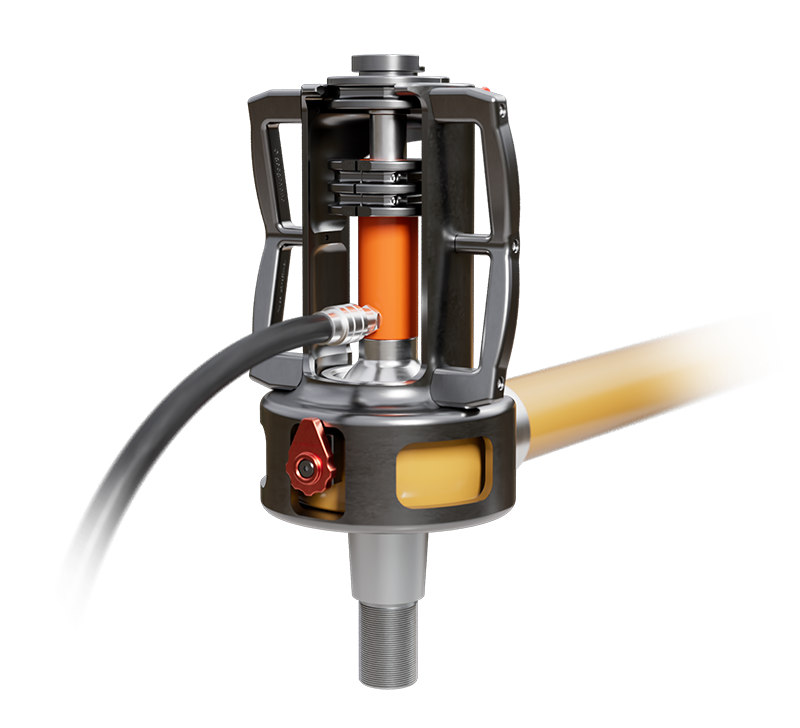

    Developed in collaboration with mine site maintenance crews, Geographe's Ball Stud Bearing Installation & Removal Tool (BSBIRT) is a purpose-built hydraulic system for safely servicing steering arm bearings on Caterpillar 785, 789, and 793 haul trucks. It replaces a high-risk manual process with a highly efficient and controlled 3 step procedure.

    Artboard 5 copy

    Eliminate High-Risk Hazards

    Artboard 5

    Single Person Mobile Operation

    Artboard 5 copy 3

    Labour Saving & Asset Protection

    90-Percent

    *In Western Australian field trials with a Tier 1 miner who used the BSBIRT in conjunction with a Geographe Ball Stud Removal Tool (BSRT).

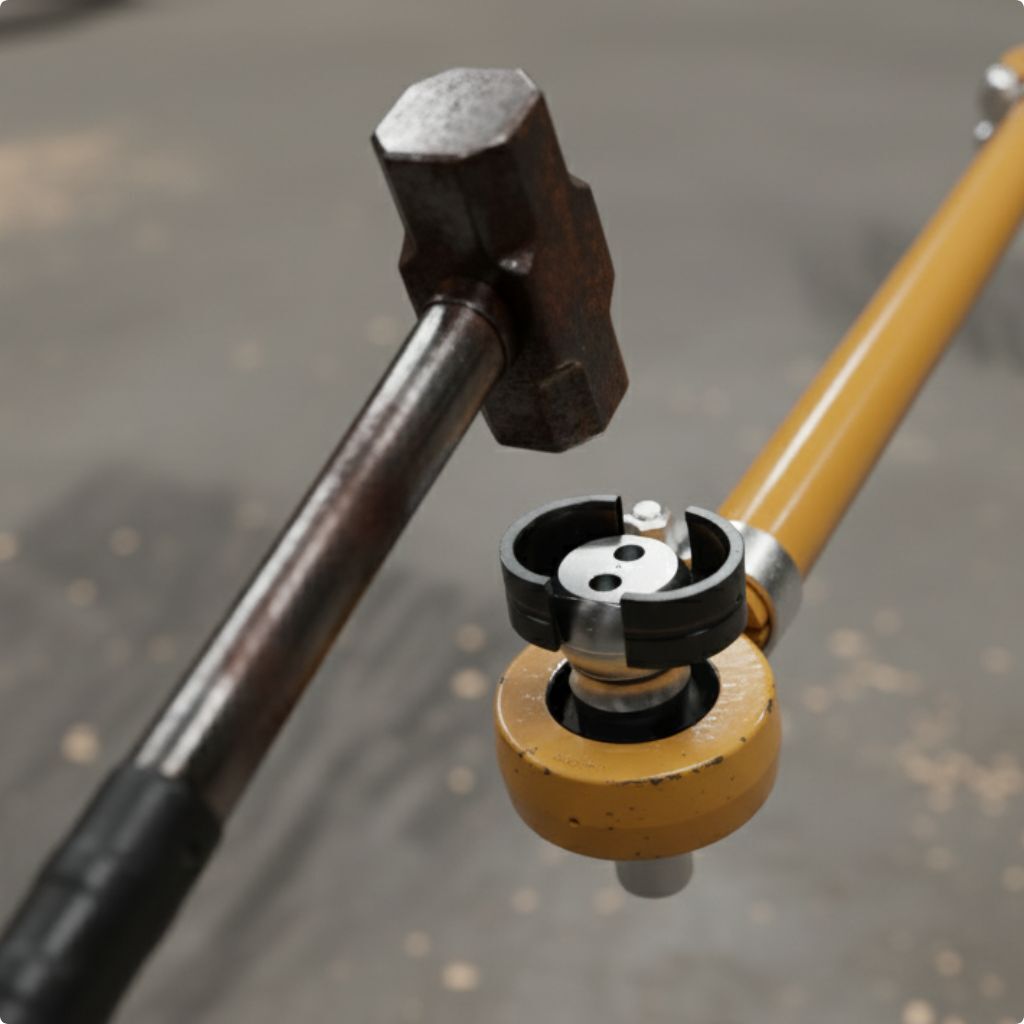

    BSBIRT-Bareing-Challenge

    The Challenge:

    Old mate strikes again (and again...)

    Traditional bearing change-outs are more than just a bottleneck; they are a high-risk gamble. The reliance on brute force, heavy hammering, improvised jacking, presses, liquid nitrogen or having to remove tie rods and steering cylinders have become outdated processes with potentially costly consequences.

    • HIGH-RISK HAZARDS
      Relies on sledgehammers and brute force,  putting your crew at risk.

    • COMPONENT DAMAGE
      Uncontrolled impacts risk damage to expensive steering components.

    • WASTED RESOURCES
      A slow, unpredictable process that can tie up multiple crew members and delays production.

    The Solution:

    Swap your old mate for a standardised procedure.

    The BSBIRT replaces brute force with precision. This engineered tool uses controlled hydraulic power to safely remove, set, and install the bearing assembly, providing a faster, safer, and more reliable method.

    • ENGINEERED SAFETY
      Eliminates all hammering of components whilst avoiding manual strains and potential hand crush injuries.

    • REVOLUTIONARY EFFICIENCY
      Reduces a multi-shift problem to a predictable one-shift solution, cutting job time significantly and drastically lowering labour costs.

    • TOTAL ASSET PROTECTION
      The built-in guidance system ensures perfect alignment, preventing damage to the bearing, ball stud, and steering eye during the critical installation phase.

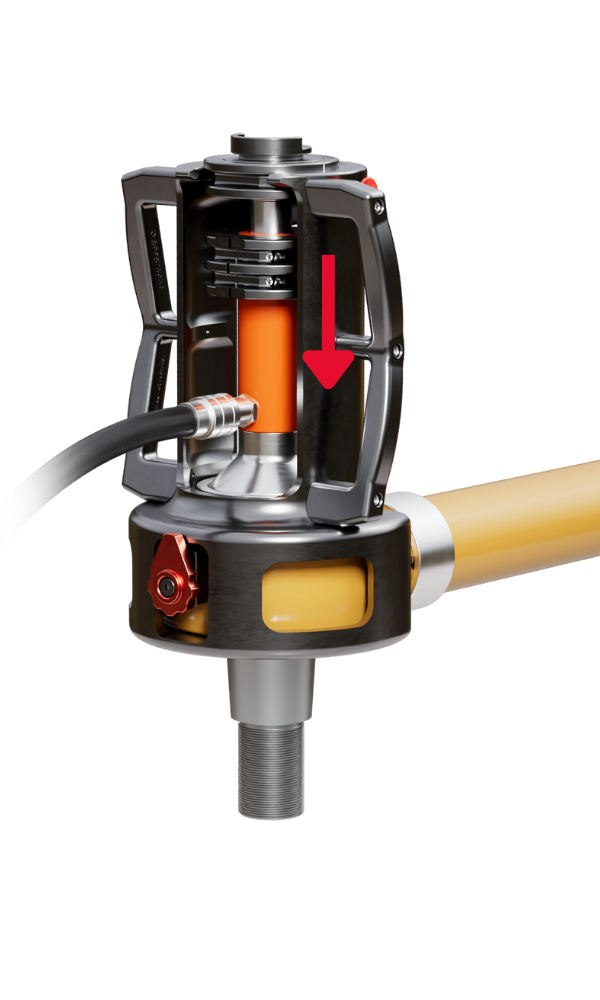

    BSBIRT-Install

    How does it work?

    The BSBIRT is designed to work in 3 simple stages: Removal, Setting and Installation.

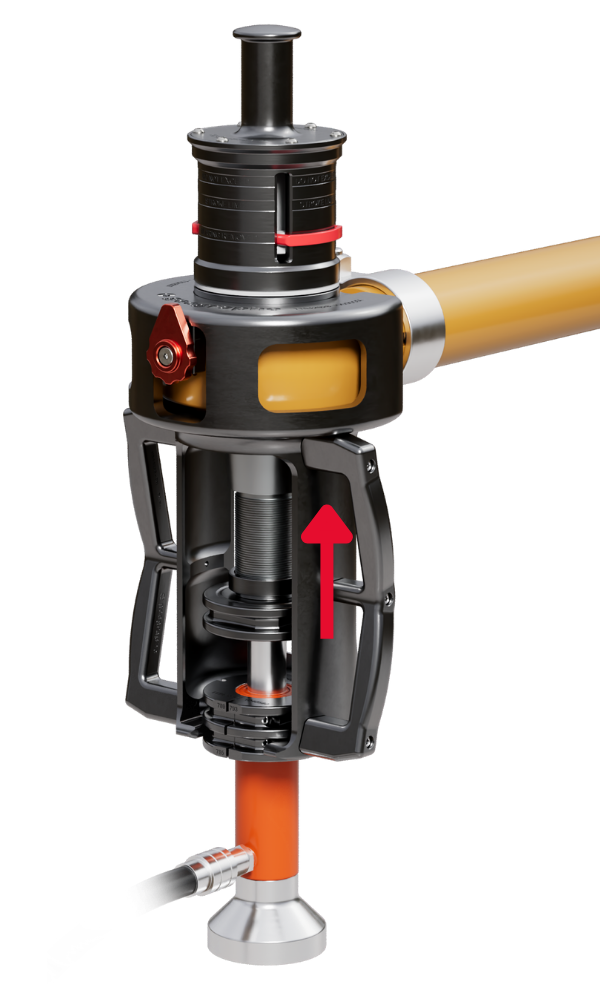

    BSBIRT-Remove
    1

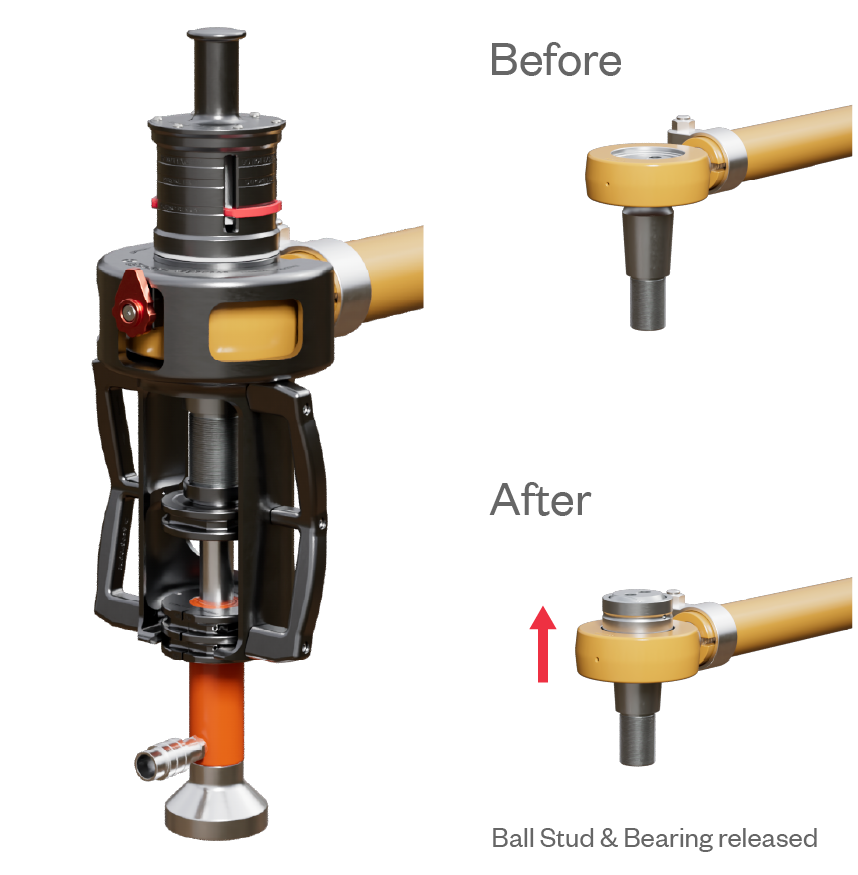

    Safe Removal

    The tool’s capsule safely houses the worn bearing during the removal process, eliminating the risk of dangerous projectiles occurring and protecting your crew.

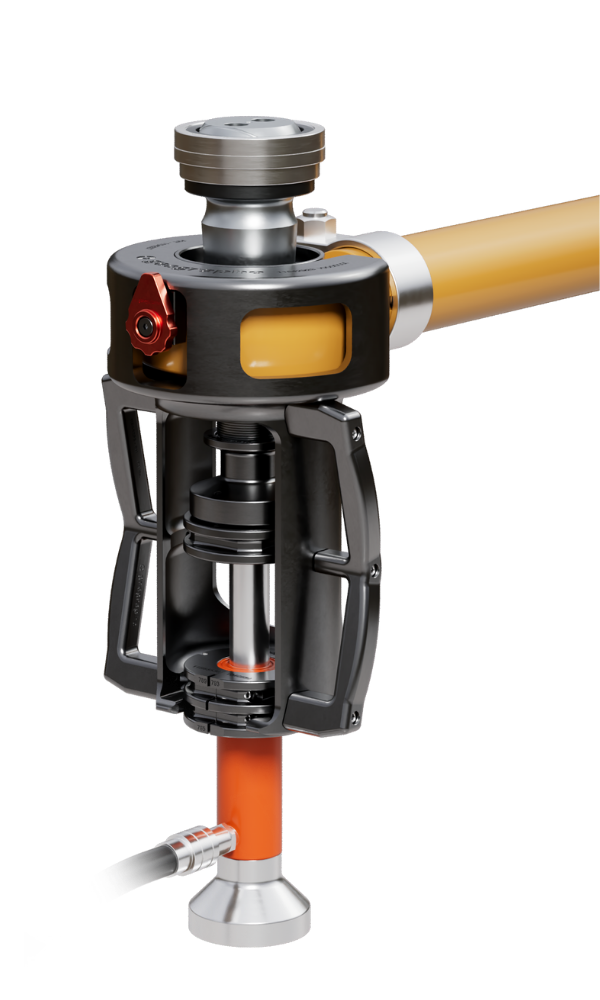

    BSBIRT-Set
    2

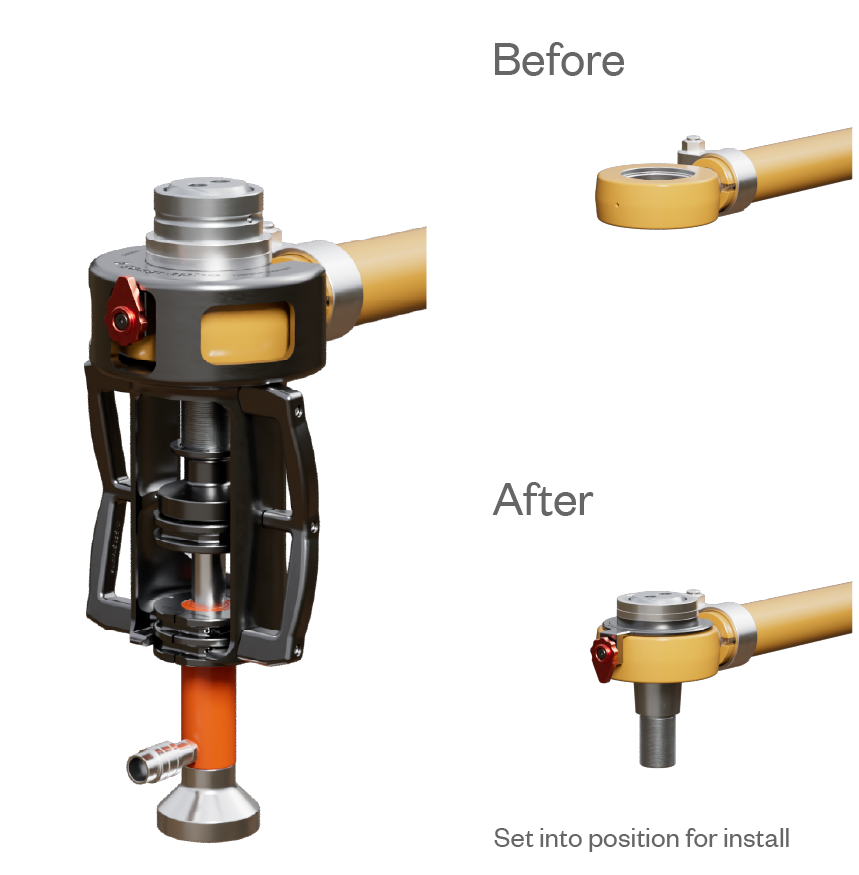

    Precise Setting

    By securely holding the new bearing and ball stud, the BSBIRT allows for precise, hands-free setting, keeping your crew clear of pinch and crush hazards.

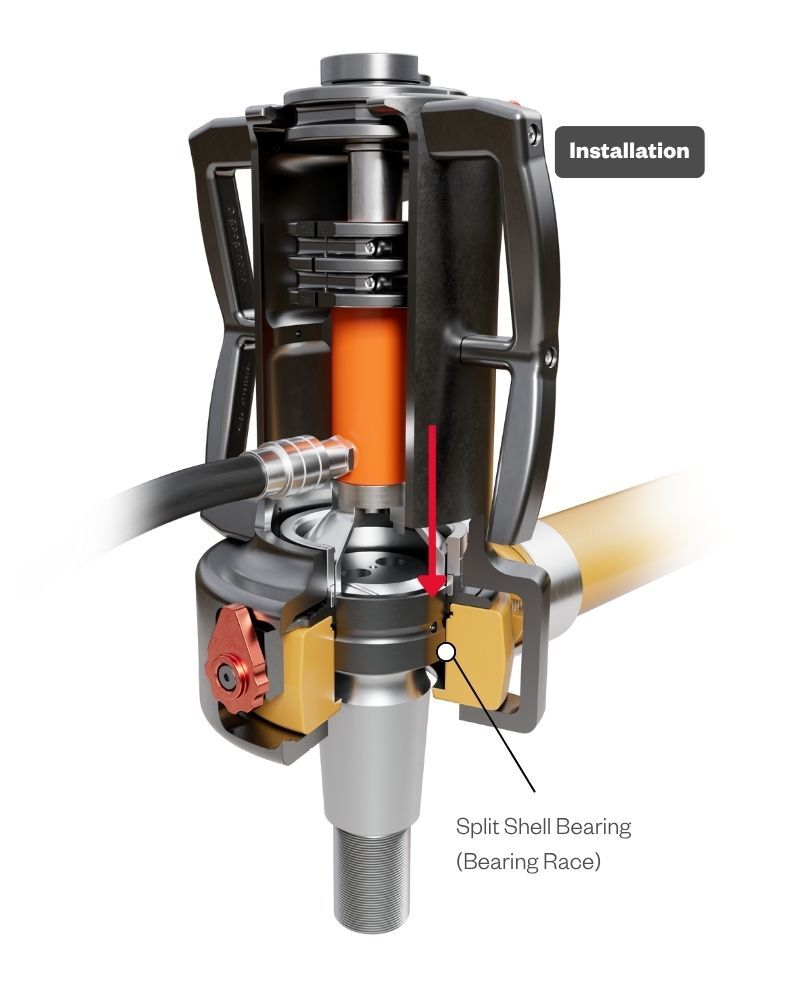

    BSBIRT-Install
    3

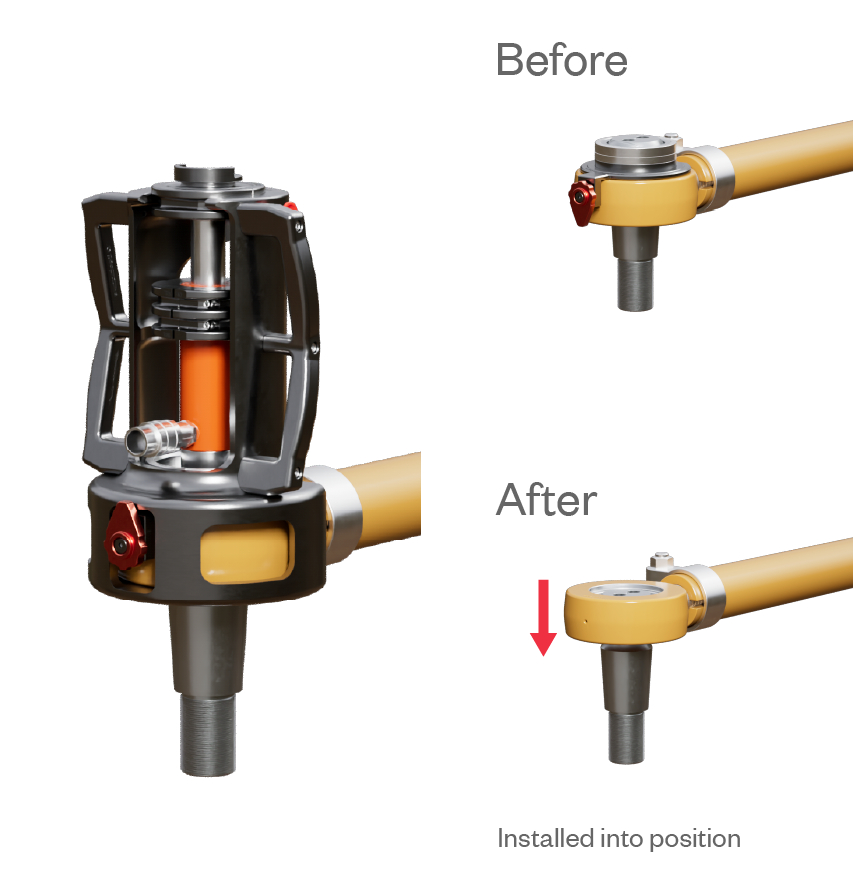

    Perfect Installation

    The tool’s built-in guidance system ensures perfect alignment while hydraulic pressure guarantees a smooth, damage-free installation.

    Icons - Clock Saving Time

    Proven capability in the field

    In field trials with a Tier 1 miner, the BSBIRT, combined with our award-winning Ball Stud Removal Tool (BSRT), delivered significant gains in efficiency:

    Two Shifts Reduced to One: Crews maintained all four steering arms in a single 12-hour shift, cutting the job time in half.

    Hours Reduced to Minutes: The BSBIRT completed each bearing replacement changeout in just 15 minutes, compared to the standard process taking up to 6 hours.

    This step-change in efficiency minimises downtime, reduces labour costs, and eliminates maintenance taking place over a double shift.  This Specialised Tooling combination delivers a faster, safer, and more predictable maintenance solution.

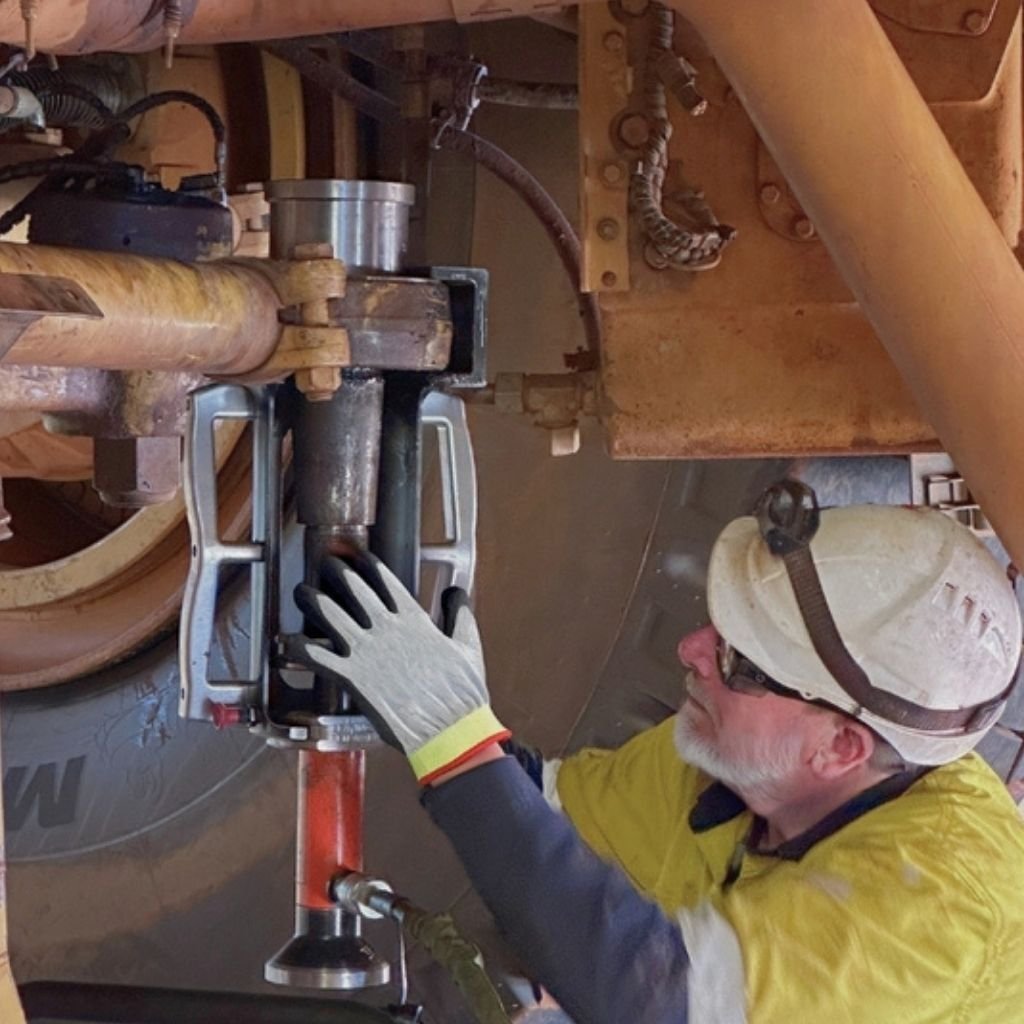

    Picture shown right - BSBIRT prototype tooling being field tested in Western Australia.

    BSBIRT-ProvenIntheField
    SinglePersonOperation
    Artboard 5

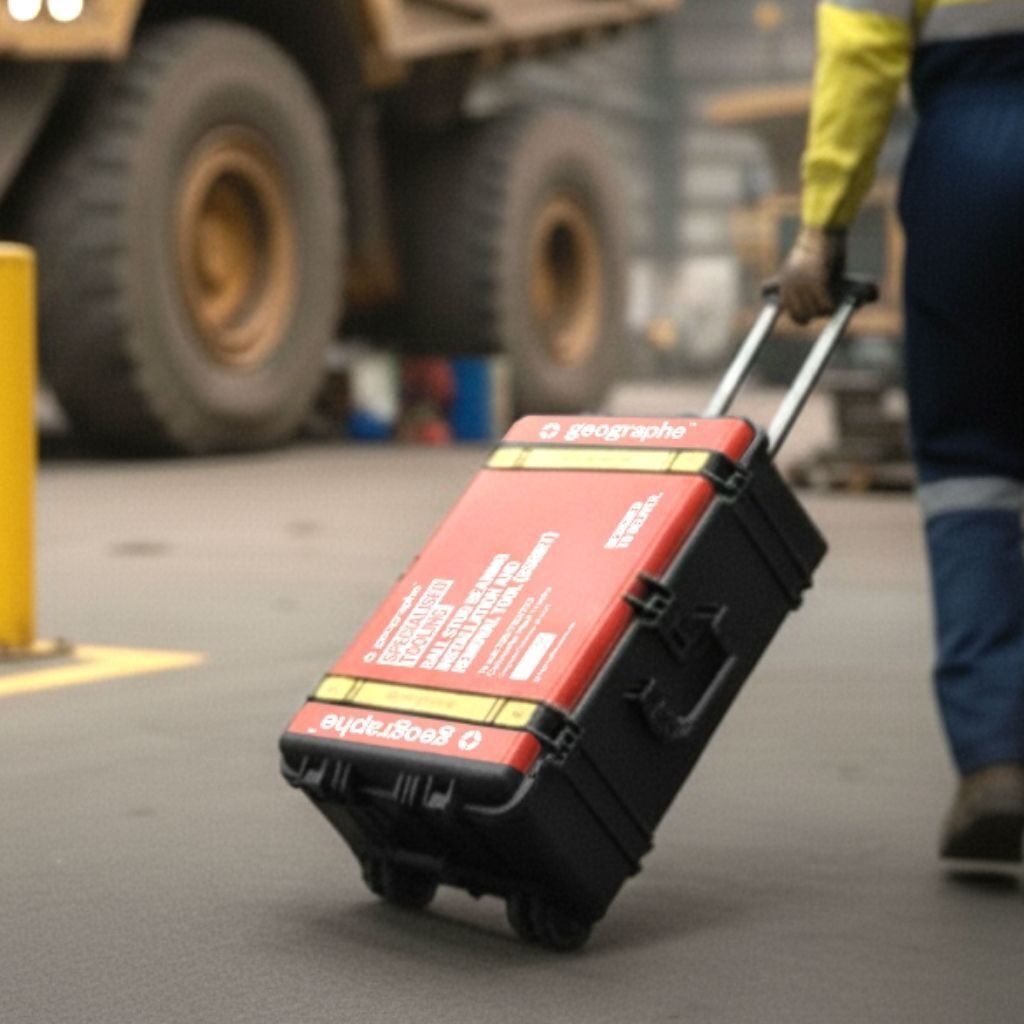

    Flexible Single Person Operation

    Maximise Crew Efficiency:

    Instead of tying up multiple crew members on a single challenging task, the BSBIRT allows one operator to manage the entire process.

    Guaranteed Consistency:

    Geographe Specialised Tooling™ dictates the procedure. Our engineers and development team have done the hard yards, so you don’t have to. This removal of guesswork ensures the job is done to the same safe, high standard, every time.

    Simplify Planning:

    The BSBIRT can turn a high-risk, multi-person job into a straightforward, one-person task, making maintenance scheduling easier and the whole process more predictable and efficient.



    Total Weight including waterproof wheeled case - 43kg

    Total Dimensions of case - L 830mm / W 540mm / H 330mm

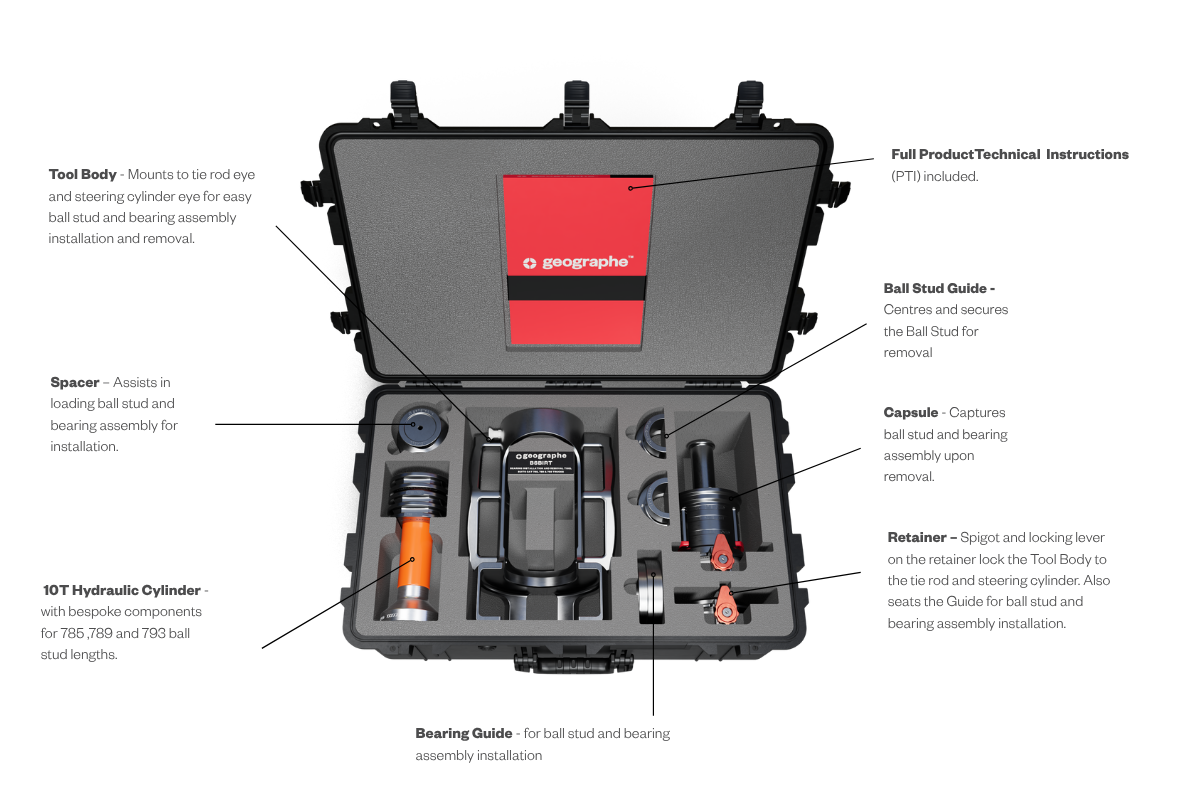

    What's in the box?

    The BSBIRT is a complete, engineered installation and removal system where every component is designed for a specific purpose:



    BSBIRT-Case

    Want to see the BSBIRT in action on your next bearing change out? We'd be happy to come and show you.

    Book a Demo

    Register your interest below for the Ball Stud Bearing Installation and Removal Tooling (BSBIRT) to suit Caterpillar 785, 789 & 793 haul trucks.



    The BSBIRT is being produced in small batch numbers based on demand. If you are looking to make a safety or uptime improvement at your mine site or workshop, please add your contact details below and we'll notify you when this new Geographe Specialised Tooling™ becomes available in early 2026.
