    Ball Stud Removal Tool to suit Caterpillar 777 Haul Trucks

    Ball Stud Removal Tool to suit Caterpillar 777 Haul Trucks

    Steering Arms

    OEM Ref: Geographe Original Design Geo Ref: 11542115

    Specialised Tooling refers to the development and production of custom tooling that has the sole purpose of improving safety and reducing the time it takes to install and remove mining equipment components.

    Designed for OEM mining machines and manufactured in quality accredited facilities to ISO-9001 standards, Specialised Tooling brings significant safety benefits and cost savings to maintenance operations.

    Building on the global success of the BSRT 2nd Generation, engineered to suit Caterpillar 785, 789, and 793 haul trucks, the 777 BSRT incorporates the same innovative split retainers for optimal performance and ease of use. Geographe's patented Ball Stud Removal Tool (BSRT) eliminates the need for thermal lancing, reducing downtime, safety risks, and operational costs. Engineered for rugged mining conditions, it features a lightweight, high-tensile alloy construction, ensuring durability, portability, and reliability in both workshop and in-field applications. Optimised for safety, efficiency, and maintenance turnaround, the BSRT to suit Caterpillar 777 haul trucks, is the ideal solution for mining operations looking to streamline ball stud removal and minimise costly downtime. Available for pre-order today!
    Reduces labour costs that result from prolonged fleet downtime Eliminates the need for hazardous maintenance practices such as thermal lancing Decreases maintenance costs due to fast, efficient ball stud removal.
    • Tick iconImproved safety
    • Tick iconReduced labour costs
    • Tick iconIncreased productivity

    Technical information

    OEMCaterpillar
    Machine TypeHaul Trucks
    Machine ModelCaterpillar Truck 777
    OEM Part RefGeographe Original Design
    Geographe Part Ref11542115
    Product TypeSpecialised Tooling
    Component TypeSpecialised Tooling
    Improvement FactorsImproved safety; Reduced labour costs; Increased productivity
    Product Weight (kg)22.4
    Product BrochureDownload Brochure

    Product Contents & Details

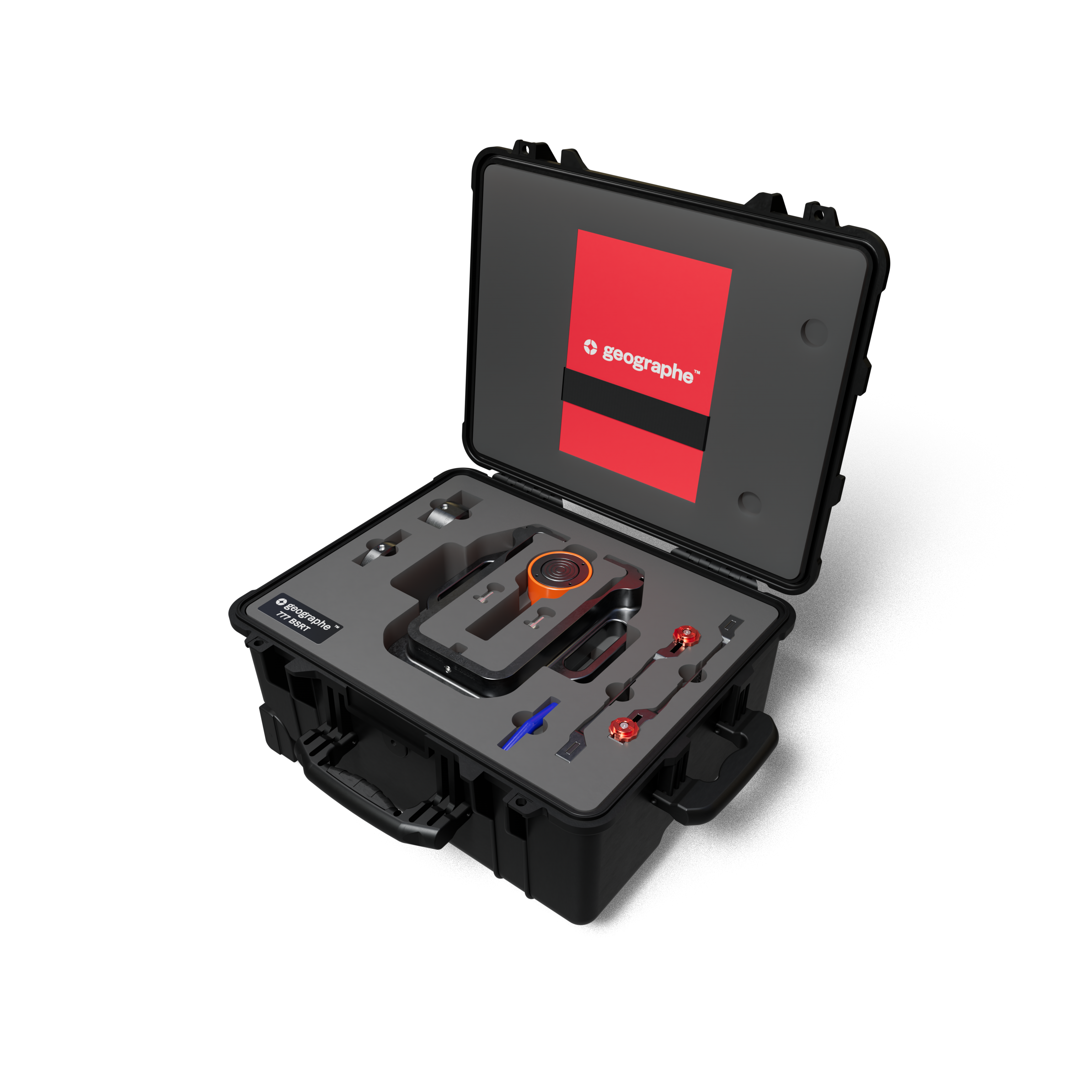

    Product Contents
    • Removal tool body with rating certificate
    • Split locking retainer assembly
    • Hi-Force© 20T hydraulic cylinder with test and conformity certificate
    • 2X Cylinder spacer assemblies (23mm & 45mm thickness) to accommodate alternative 777 ball stud lengths
    • Allen Key for spacer installation and removal
    • Laminated user manual and BSRT usage log
    • Custom waterproof wheeled Pelican™ case for easy transportation
    Product Contents Image

    When equipment failure is not an option, partner with us.

    From existing products available for all type of OEM Mining Equipment to solving your unique challenges through custom design and trials, we can help.
    CONNECT WITH THE GEOGRAPHE TEAM

    What our customers say

    Our customers are at the heart of what we do.

    Discover how we’ve already transformed mining operations for Tier 1 miners across the world in our live webinar.

    LEARN MORE
    BP 2024 FMG Logo

    “The Caterpillar Haul Truck Ball Stud Removal Tool has reduced the time to remove ball studs from 12 hours per truck to just 1 hour. The risk of damaging jacks throughout the process has also been removed. This initiative represents a significant cost and time reduction while also improving safety for our maintainers.”

    - Truck Maintenance Superintendent, FMG Fortescue Metals Group

    south32-removebg-preview

    “Using the Geographe Ball Stud Removal Tool, the workgroup was able to separate 6 ball studs in under 15 minutes, this all done without heat or excessive stress on steering components.”

    - Mobile Maintenance Supervisor, South 32
