March 28, 2019
Rear Suspension Frame Bushes to suit 793F CAT trucks

In 2015, Geographe were approached by a series of clients looking for a solution to the premature failure of OEM Rear Suspension frame fibre reinforced polymer (FRP) bushes (CAT part 294-9704 superseded to 514-0295) that suit the CAT 793F Rear Suspension Link Frame and Differential Housing.

In response to our client feedback, a Steel version was developed and trialled at a major Australian coal mine and a Bronze version was requested also due to the failure rate of the OEM fibrous bush.

The 294-9704 / 514-0295 Caterpillar fibrous bushes have recently been superseded to match the Geographe Bronze Enhanced Performance standard shown above.  The Geographe part number for this Bronze Strut Pin Bush is 11538797.

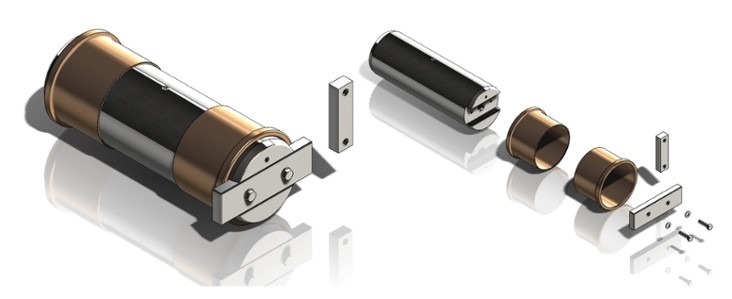

These parts including the Geographe Bronze Rear Suspension frame Bush can also be supplied as a complete rear suspension kit:

OEM Reference Geographe Reference Description Quantity in Kit
2783446/KITSTD 11538825 KIT; SUSPENSION: REAR: 793F 1
2783446 11538466 PIN 1
3030349 11538735 PLATE 1
3021372 11538736 PLATE 1
8T4121 11532533 WASHER; FLAT: M10 8
8T4186 11486586 BOLT; HEX HEAD: M10: PLATED 4
5140295 11538797 BUSH; SUSPENSION: REAR: BRONZE 2

Alternatively a Pin and Bush only Kit is available:

OEM Reference Geographe Reference Description Quantity in Kit
2783446/KITSTD1 11538826 KIT; SUSPENSION: REAR : PIN & BUSH 1
2783446 11538466 PIN 1
5140295 11538797 BUSH; SUSPENSION: REAR: BRONZE 2

For more information on how a Geographe Bronze Rear Suspension frame bush or a Rear Suspension Kit to suit a Caterpillar 793F haul truck can help save costs on your fleet maintenance and increase your truck fleet uptime, please contact your Relationship Manager.

Alternatively please call 1800 999 240 (within Australia) and speak to our Sales and Service Team quoting reference 11538797 for the Bronze Bush, 11538825 for the complete Rear Suspension Kit or 11538826 for the Rear Suspension Pin and Bush Kit.

Other Geographe parts to suit the Caterpillar haul truck range can be found here.
