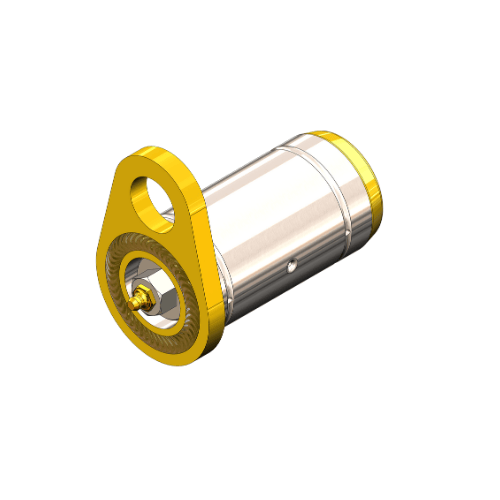

    Cylinder to Front Frame Artic Pin Assembly 2778758 to suit Caterpillar 16M Graders

    Cylinder to Front Frame Artic Pin Assembly 2778758 to suit Caterpillar 16M Graders

    Cylinder to Front Frame

    OEM Ref: 2778758 KIT/EPMOD Geo Ref: 11540560

    An EP MOD part is a Geographe Enhanced Performance™ part that may also require the machine to be modified for correct installation.

    Geographe Enhanced Performance™ (EP) parts are specifically engineered to solve common challenges mine sites face, optimising the performance, durability, and efficiency of machinery used in mining operations.

    Enhanced Performance parts incorporate advanced materials, innovative designs, and rigorous testing by enhancing the current design, offering superior resistance to wear, corrosion, and impact, resulting in extended service life and reduced downtime to achieve operational excellence.

    The Cylinder to Front Frame Artic Pin Assembly (2778758) is engineered to suit Caterpillar 16M graders. With Greater grease distribution, the pin’s design allows for even grease distribution between the bush and Grader frame clevis. Reducing premature wear at a critical connection. At Geographe, our enhanced performance parts are developed through material and design improvements, delivering longer service life and reduced maintenance downtime.
    Decrease in extended downtime during maintenance events, decreasing unnecessary maintenance and labour costs Greater grease distribution, due to pin design that allows for even grease distribution between the bush and Grader frame clevis Increased overall safety practices by minimising the need for thermal lancing
    • Tick iconSimple to fit
    • Tick iconSafe to install
    • Tick iconLocal stock and supply to support fast delivery to site

    Technical information

    OEMCaterpillar
    Machine TypeGraders
    Machine ModelCaterpillar Grader 16M
    OEM Part Ref2778758 KIT/EPMOD
    Geographe Part Ref11540560
    Product TypeMobile Fleet Parts
    Component TypeEnhanced Modified Part
    Improvement FactorsSimple to fit; Safe to install; Local stock and supply to support fast delivery to site
    Product BrochureDownload Brochure
