    Colleted Pin Assembly (CPA)

    To suit Caterpillar Haul Trucks
    (773, 777, 785, 789, 793), D10 Dozers &
    Komatsu Haul Trucks (830E, 930E)

    Book a demo
    ELIMINATE SEIZED PINS. ELIMINATE THERMAL LANCING.

    The Enhanced Performance (EP) solution for Rear Strut, Suspension, and Sway Bar pins on Caterpillar and Komatsu Haul Trucks.

    Standard OEM suspension pins are prone to seizing, leading to dangerous and time-consuming removal processes. Geographe's Colleted Pin Assembly (CPA) replaces the standard solid pin with an advanced, expandable system that mechanically locks into the housing to prevent fretting, while ensuring a safe, rapid, and cold extraction every time.

    HotWorks

    Eliminate Hot Work

    ReduceDamage

    Prevent Bore Damage

    Fitting-F

    Eliminate Line Boring Repairs once installed

    ZeroThermalLancing

    The Challenge:

    Seized pins are a dangerous liability for your maintenance team.

     On heavy haul trucks, suspension and sway bar pins operate under immense load and are notorious for seizing within the housing due to fretting corrosion. When removal is required, standard mechanical methods often fail, forcing maintenance teams to resort to thermal lancing.

    • EXTREME SAFETY RISK
      |Thermal lancing introduces high-risk hot works into the maintenance bay, requiring fire spotters, exclusion zones, and exposing personnel to potential burns and fumes.

    • OPERATIONAL DELAY
      The procedure is time-consuming, often requiring tyre removal and significant preparation, keeping the asset offline for extended periods.

    • ASSET DAMAGE

      Seized pins that rotate and fret damage the bore, necessitating expensive and time-consuming line boring repairs during the change-out.

    The Solution:

    Mechanically locked. Safely removed.

     Geographe has engineered a permanent solution to the seizing problem. The Colleted Pin Assembly (CPA) uses a unique, expandable collet system that replaces the standard solid pin. This design mechanically locks the pin into the housing structure, preventing the micro-movements that lead to seizing and wear.

    • ELIMINATE HOT WORKS
      Removes the need for thermal lancing, fire spotters, and exclusion zones.

    • MAXIMIZE UPTIME
      Drastically reduces removal and installation time, getting the truck back in the circuit faster.

    • PROTECT THE ASSET
      The fixed collet protects the bore from wear, often eliminating the need for line boring during changeouts.

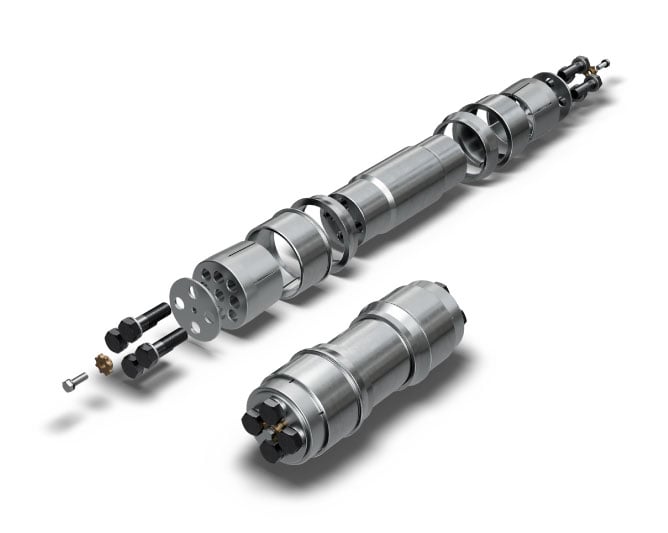

    CPA-Solution

    How does it work:

     Intelligent design for a permanent fix.

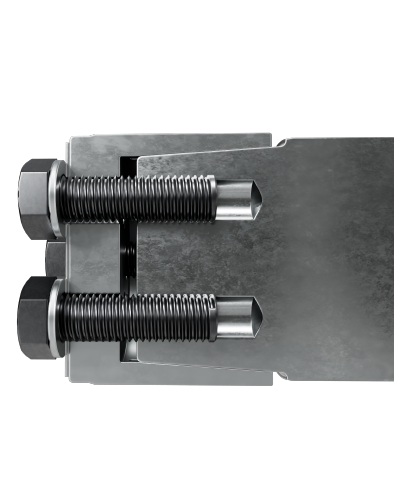

    Expansion-Locking
    1

    Expansion & Locking

    The CPA features split collets that slide over the central pin. As the assembly is tightened, these collets expand outwards, creating a powerful mechanical lock against the housing bore. This eliminates all rotation and fretting.

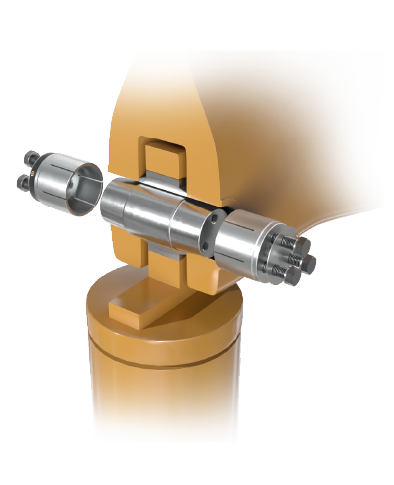

    Bore-Protection
    2

    Bore Protection

    Because the pin is locked solid against the bore, there is no metal-on-metal movement between the pin and the housing. This sacrificial collet system absorbs the load, protecting your expensive housing from wear and ovalisation.

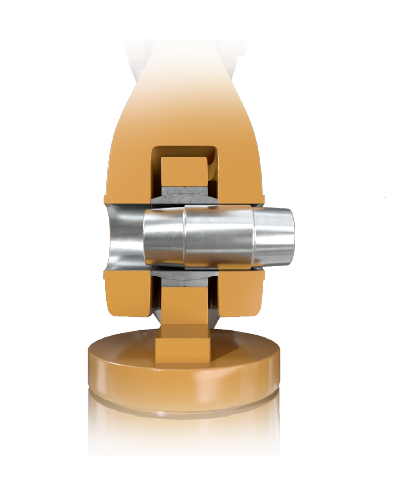

    SafeColdExtraction
    3

    Safe, Cold Extraction

    When maintenance is required, the collets are mechanically retracted using the specialised installation tool. This releases the pressure, allowing the pin to be removed easily and safely without heat, hammers, or lancing.

    Icons - Clock Saving Time

    Don't replace the part. Restore the fit.

    The STRIK is more than a repair kit, it’s a lifecycle extension strategy for your fleet. In the field, maintenance teams often face the choice of fitting a standard stud into a marginal bore (risking failure) or scrapping the arm (wasting money). The STRIK provides a third, smarter option.

    Recondition and Reuse

    By standardising this inspection process, sites can prevent the common cycle of "change-out > loosen > fail," ensuring that every steering component leaves the bay with a factory-spec interference fit. This directly supports Zero Harm by eliminating the mechanical cause of steering loss events.

    BSBIRT-ProvenIntheField
    SinglePersonOperation
    Artboard 5

    Flexible Single Person Operation

    Maximise Crew Efficiency:

    Instead of tying up multiple crew members on a single challenging task, the BSBIRT allows one operator to manage the entire process.

    Guaranteed Consistency:

    Geographe Specialised Tooling™ dictates the procedure. Our engineers and development team have done the hard yards, so you don’t have to. This removal of guesswork ensures the job is done to the same safe, high standard, every time.

    Simplify Planning:

    The BSBIRT can turn a high-risk, multi-person job into a straightforward, one-person task, making maintenance scheduling easier and the whole process more predictable and efficient.



    Total Weight including waterproof wheeled case - 43kg

    Total Dimensions of case - L 830mm / W 540mm / H 330mm

    What's in the box?

    The BSBIRT is a complete, engineered installation and removal system where every component is designed for a specific purpose:



    BSBIRT-Case

    Fleet Compatibility

    For Caterpillar Fleets

    Haul Trucks

    • Suits 7-Series Haul Trucks: (773, 777, 785, 789, 793).
    • Applications: Rear Strut, Rear Suspension, Sway Bar, A-Frame.
    • Enhanced Options: Available in Greased Versions (for extreme conditions) and A-Frame Kits (with thicker outer shells for 2x performance).
    Machine Supported Location OEM Ref Geographe Ref
    Caterpillar Truck 773 Caterpillar Truck 777 Caterpillar Truck 777B Caterpillar Truck 777D Caterpillar Truck 777E Caterpillar Truck 777F Caterpillar Truck 777G
    		Swaybar
    7D3009 EPMODASSY; 4205462 MODASSY
    		 11536088 Learn More
    Caterpillar Truck 773 Caterpillar Truck 777 Caterpillar Truck 777B Caterpillar Truck 777D Caterpillar Truck 777E Caterpillar Truck 777F Caterpillar Truck 777G
    		Swaybar
    7D3009 EPMODASSY2; 4205462 EPMODASSY2
    		 11541832 Learn More
    Caterpillar Truck 777 Caterpillar Truck 777B Caterpillar Truck 777D Caterpillar Truck 777F Caterpillar Truck 777G
    		Rear Strut
    9D2278 EPMODASSY
    		 11536087 Learn More
    Caterpillar Truck 777 Caterpillar Truck 777B Caterpillar Truck 777D Caterpillar Truck 777F Caterpillar Truck 777G
    		Rear Strut
    9D2278 EPMODASSY1
    		 11541825 Learn More
    Caterpillar Truck 777 Caterpillar Truck 777B Caterpillar Truck 777D Caterpillar Truck 777E Caterpillar Truck 777F Caterpillar Truck 777G Caterpillar Truck 785 Caterpillar Truck 785B Caterpillar Truck 785C Caterpillar Truck 785D
    		A-Frame
    8X0573 ASSYEPMOD
    		 11536089 Learn More
    Caterpillar Truck 785 Caterpillar Truck 785B Caterpillar Truck 785C Caterpillar Truck 785D
    		Rear Strut
    1506308 EPMODASSY
    		 11529047 Learn More
    Caterpillar Truck 785 Caterpillar Truck 785B Caterpillar Truck 785C Caterpillar Truck 785D Caterpillar Truck 789B Caterpillar Truck 789C Caterpillar Truck 789D Caterpillar Truck 793C Caterpillar Truck 793D
    		Swaybar
    5T5947 EPMODASSY
    		 11546122 Learn More
    Caterpillar Truck 793C Caterpillar Truck 793D Caterpillar Truck 793F Caterpillar Truck 789B Caterpillar Truck 789C Caterpillar Truck 789D
    		Rear Strut
    1503772 ASSYEPMOD
    		 11540005 Learn More
    Caterpillar Truck 793F
    		Rear Suspension
    5056560 ASSYEPMOD
    		 11541895 Learn More
    Caterpillar Truck 793
    		A-Frame
    8X2936 ASSYEPMOD
    		 11544029 Learn More

     Dozers

    • Suits D10T & D11T Dozers.
    • Applications: Radiator Frame Nose Cone (Rear position).
    Machine Supported Location OEM Ref Geographe Ref
    Caterpillar Dozer D10T
    		Radiator
    2330890 MODASSY
    		 11541238 Learn More

     For Komatsu Fleets

    • Suits 830E & 930E Haul Trucks.
    • Applications: Rear Strut & Sway Bar.
    • Drop-In Replacement: No modifications required to the critical parts of the machine to fit the EPMOD version.
    Machine Supported Location OEM Ref Geographe Ref
    Komatsu Truck 830 Komatsu Truck 830E
    		Rear Strut
    EK1326 ASSYEPMOD
    		 11540877 Learn More
    Komatsu Truck 930 Komatsu Truck 930E
    		Rear Strut
    EJ2846 ASSYEPMOD
    		 11541308 Learn More

     Note: All EPMOD versions are drop-in replacements requiring no modifications to the machine frame.

     Intelligent design for a permanent fix.

    The CPA is the smart middle ground. Itfixes the seizing problem of the OEM pin without the high cost of complexexpanding sleeves. You get a seized-free, safe-to-remove pin that is affordableenough to use across your entire fleet.



    Feature Komatsu (OEM) Birrana (H-E Parts) Nord-Lock (Expander) Geographe (EP Parts)
    Technology Straight Pin Colleted Pin Expanding Sleeve Colleted Pin
    Primary Mechanism Interference/Slip fit. Relies on tight tolerances. Tapered collets (wedges) lock the pin ends into the bore. Segmented sleeves expand radially to fill the bore gap. Tapered collets (wedges) lock the pin ends into the bore.
    Best Application Budget-only. When initial purchase price is the only concern. Prevention. Standard upgrade for good bores to prevent seizure. Repair. Best for worn/oval bores to avoid line boring. Prevention. Standard upgrade for good bores to prevent seizure.
    Seizure Risk High. Very difficult to remove after long service hours. Low. Collets release tension mechanically. Very Low. Sleeves relax when nuts are loosened. Low. Collets release tension mechanically.
    Bore Condition Strict. Requires pristine, round bores. Moderate. Needs good bores to seat collets correctly. Flexible. Designed to fill worn/oval bores (up to ~2mm+). Moderate. Needs good bores to seat collets correctly.
    Removal Method Thermal Lancing. Often requires "Hot Works." Mechanical. Rattle gun & tap out. Mechanical. Loosen nut & tap out. Mechanical. Rattle gun & tap out.
    Origin / Owner OEM (Komatsu) H-E Parts International (Global) Nord-Lock Group (Sweden/Global) Independent (Western Australia)
    Relative Cost $ (Cheapest) $$ (Mid-Range) $$$ (Premium) $$ (Mid-Range)

    CPA Installation & RemovalTooling Kit

    After developing the Enhanced Performance(EP) Colleted Pin Assembly (CPA), Geographe developed the CPA Installation& Removal Tooling Kit as part of their Specialised Tooling range.Specifically designed to aid in the fitting and removal of CPAs on the Komatsu830E and 930E haul trucks.

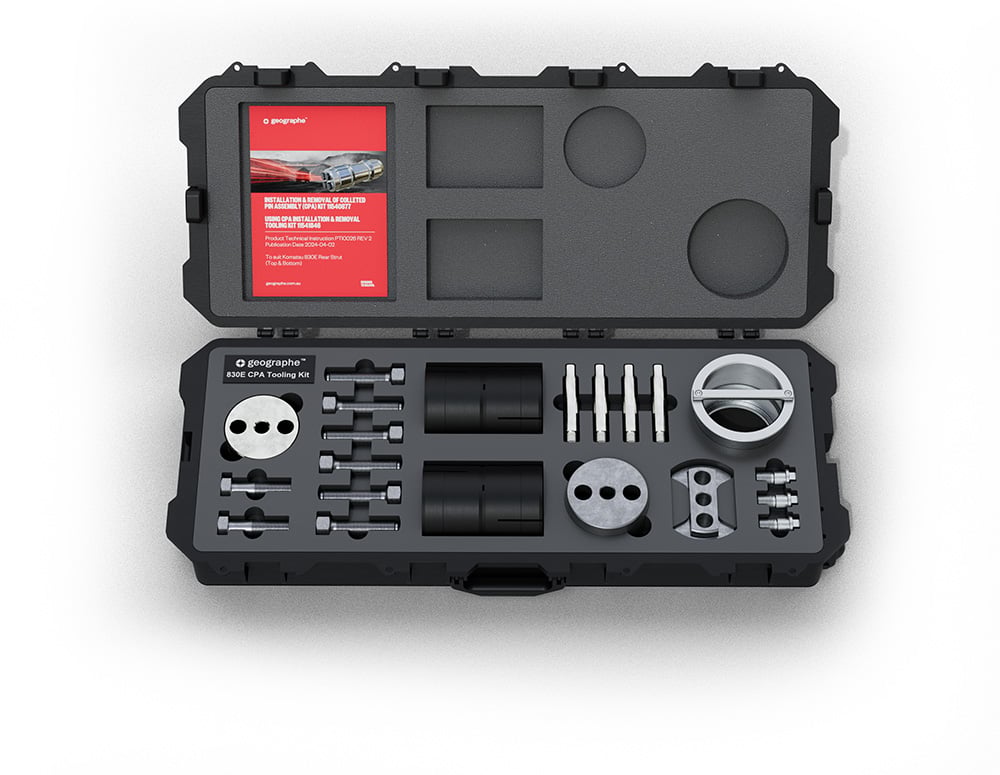

     11541846: CPA Installation & Removal Tooling Kit

     To suit Rear Strut & Sway Bar 830E Komatsu Haul Trucks

    11541846 Rev 2 830e Rev 2 Kit - Top-2

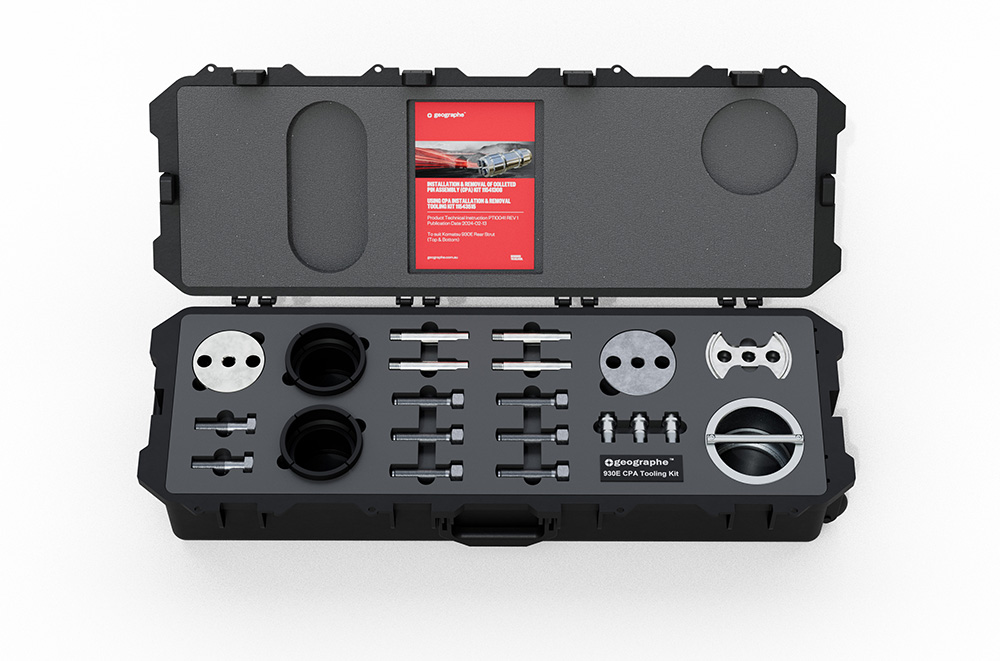

     11543515: CPA Installation & Removal Tooling Kit

     To suit Rear Strut 930E Komatsu Haul Trucks

    11543515-930e-CPA-Kit-Top

    Believe that a collated pin assembly is right for your operation?Learn more about the options available:

    Book a Demo

    Register your interest below for the  Colleted Pin Assembly (CPA)  to suit Caterpillar 773, 777, 785, 789 & 793 haul trucks and Komatsu 830E & 930E haul trucks.



    The CPA is engineered to eliminate thermal lancing and protect your housing bores from costly damage. If you are looking to make a safety or uptime improvement at your mine site or workshop, please add your contact details below and we'll be in touch regarding this Geographe Enhanced Performance™ solution.
